cimpy.cgmes_v2_4_15.WindGenTurbineType3bIEC module

class cimpy.cgmes_v2_4_15.WindGenTurbineType3bIEC.WindGenTurbineType3bIEC(fducw=0.0, tg=0, two=0, mwtcwp=False, xs=0.0, *args, **kw_args)

IEC Type 3B generator set model. Reference: IEC Standard 61400-27-1 Section 6.6.3.3.

fducw

Crowbar duration versus voltage variation look-up table (f()). It is case dependent parameter. Default: 0.0

tg

Current generation Time constant (). It is type dependent parameter. Default: 0

two

Time constant for crowbar washout filter (). It is case dependent parameter. Default: 0

mwtcwp

Crowbar control mode (). The parameter is case dependent parameter. Default: False

xs

Electromagnetic transient reactance (x). It is type dependent parameter. Default: 0.0

Documentation of parent class WindGenTurbineType3IEC:

Generator model for wind turbines of IEC type 3A and 3B.

WindAeroLinearIEC

Wind aerodynamic model associated with this wind generator type 3 model. Default: None

WindContPitchAngleIEC

Wind control pitch angle model associated with this wind turbine type 3. Default: None

WindContPType3IEC

Wind control P type 3 model associated with this wind turbine type 3 model. Default: None

dipmax

Maximum active current ramp rate (di). It is project dependent parameter. Default: 0.0

diqmax

Maximum reactive current ramp rate (di). It is project dependent parameter. Default: 0.0

WindMechIEC

Wind mechanical model associated with this wind turbine Type 3 model. Default: None

Documentation of parent class WindTurbineType3or4IEC:

Parent class supporting relationships to IEC wind turbines Type 3 and 4 and wind plant including their control models.

WindContCurrLimIEC

Wind control current limitation model associated with this wind turbine type 3 or 4 model. Default: None

WIndContQIEC

Wind control Q model associated with this wind turbine type 3 or 4 model. Default: None

WindProtectionIEC

Wind turbune protection model associated with this wind generator type 3 or 4 model. Default: None

Documentation of parent class WindTurbineType3or4Dynamics:

Parent class supporting relationships to wind turbines Type 3 and 4 and wind plant including their control models.

EnergySource

Energy Source (current source) with which this wind Type 3 or 4 dynamics model is asoociated. Default: None

RemoteInputSignal

Wind turbine Type 3 or 4 models using this remote input signal. Default: None

WindPlantDynamics

The wind plant with which the wind turbines type 3 or 4 are associated. Default: None

Documentation of parent class DynamicsFunctionBlock:

Abstract parent class for all Dynamics function blocks.

enabled

Function block used indicator. true = use of function block is enabled false = use of function block is disabled. Default: False

Documentation of parent class IdentifiedObject:

This is a root class to provide common identification for all classes needing identification and naming attributes.

DiagramObjects

The domain object to which this diagram object is associated. Default: “list”

mRID

Master resource identifier issued by a model authority. The mRID is globally unique within an exchange context. Global uniqueness is easily achieved by using a UUID, as specified in RFC 4122, for the mRID. The use of UUID is strongly recommended. For CIMXML data files in RDF syntax conforming to IEC 61970-552 Edition 1, the mRID is mapped to rdf:ID or rdf:about attributes that identify CIM object elements. Default: ‘’

name

The name is any free human readable and possibly non unique text naming the object. Default: ‘’

description

The description is a free human readable text describing or naming the object. It may be non unique and may not correlate to a naming hierarchy. Default: ‘’

energyIdentCodeEic

The attribute is used for an exchange of the EIC code (Energy identification Code). The length of the string is 16 characters as defined by the EIC code. References: Default: ‘’

shortName

The attribute is used for an exchange of a human readable short name with length of the string 12 characters maximum. Default: ‘’

cgmesProfile

alias of cimpy.cgmes_v2_4_15.Base.Profile

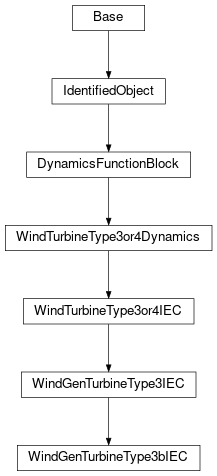

Inheritance Diagram:
