cimpy.cgmes_v2_4_15.WindGenTurbineType2IEC module¶
-
class
cimpy.cgmes_v2_4_15.WindGenTurbineType2IEC.
WindGenTurbineType2IEC
(WindContRotorRIEC=None, WindPitchContEmulIEC=None, *args, **kw_args)[source]¶ Wind turbine IEC Type 2. Reference: IEC Standard 61400-27-1, section 6.5.3.
- WindContRotorRIEC
Wind control rotor resistance model associated with wind turbine type 2 model. Default: None
- WindPitchContEmulIEC
Pitch control emulator model associated with this wind turbine type 2 model. Default: None

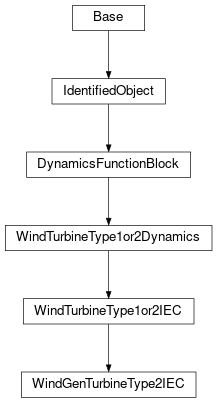

Documentation of parent class WindTurbineType1or2IEC:
Generator model for wind turbine of IEC Type 1 or Type 2 is a standard asynchronous generator model. Reference: IEC Standard 614000-27-1 Section 6.6.3.1.
- WindMechIEC
Wind mechanical model associated with this wind generator type 1 or 2 model. Default: None
- WindProtectionIEC
Wind turbune protection model associated with this wind generator type 1 or 2 model. Default: None
Documentation of parent class WindTurbineType1or2Dynamics:
Parent class supporting relationships to wind turbines Type 1 and 2 and their control models.
- RemoteInputSignal
Remote input signal used by this wind generator Type 1 or Type 2 model. Default: None
- AsynchronousMachineDynamics
Asynchronous machine model with which this wind generator type 1 or 2 model is associated. Default: None
Documentation of parent class DynamicsFunctionBlock:
Abstract parent class for all Dynamics function blocks.
- enabled
Function block used indicator. true = use of function block is enabled false = use of function block is disabled. Default: False
Documentation of parent class IdentifiedObject:
This is a root class to provide common identification for all classes needing identification and naming attributes.
- DiagramObjects
The domain object to which this diagram object is associated. Default: “list”
- mRID
Master resource identifier issued by a model authority. The mRID is globally unique within an exchange context. Global uniqueness is easily achieved by using a UUID, as specified in RFC 4122, for the mRID. The use of UUID is strongly recommended. For CIMXML data files in RDF syntax conforming to IEC 61970-552 Edition 1, the mRID is mapped to rdf:ID or rdf:about attributes that identify CIM object elements. Default: ‘’
- name
The name is any free human readable and possibly non unique text naming the object. Default: ‘’
- description
The description is a free human readable text describing or naming the object. It may be non unique and may not correlate to a naming hierarchy. Default: ‘’
- energyIdentCodeEic
The attribute is used for an exchange of the EIC code (Energy identification Code). The length of the string is 16 characters as defined by the EIC code. References: Default: ‘’
- shortName
The attribute is used for an exchange of a human readable short name with length of the string 12 characters maximum. Default: ‘’
-
cgmesProfile
¶ alias of
cimpy.cgmes_v2_4_15.Base.Profile
