cimpy.cgmes_v2_4_15.ExternalNetworkInjection module

class cimpy.cgmes_v2_4_15.ExternalNetworkInjection.ExternalNetworkInjection(governorSCD=0.0, maxP=0.0, maxQ=0.0, minP=0.0, minQ=0.0, ikSecond=False, maxInitialSymShCCurrent=0.0, maxR0ToX0Ratio=0.0, maxR1ToX1Ratio=0.0, maxZ0ToZ1Ratio=0.0, minInitialSymShCCurrent=0.0, minR0ToX0Ratio=0.0, minR1ToX1Ratio=0.0, minZ0ToZ1Ratio=0.0, voltageFactor=0.0, referencePriority=0, p=0.0, q=0.0, *args, **kw_args)

This class represents external network and it is used for IEC 60909 calculations.

governorSCD

Power Frequency Bias. This is the change in power injection divided by the change in frequency and negated. A positive value of the power frequency bias provides additional power injection upon a drop in frequency. Default: 0.0

maxP

Maximum active power of the injection. Default: 0.0

maxQ

Not for short circuit modelling; It is used for modelling of infeed for load flow exchange. If maxQ and minQ are not used ReactiveCapabilityCurve can be used Default: 0.0

minP

Minimum active power of the injection. Default: 0.0

minQ

Not for short circuit modelling; It is used for modelling of infeed for load flow exchange. If maxQ and minQ are not used ReactiveCapabilityCurve can be used Default: 0.0

ikSecond

Indicates whether initial symmetrical short-circuit current and power have been calculated according to IEC (Ik`). Default: False

maxInitialSymShCCurrent

Maximum initial symmetrical short-circuit currents (Ik` max) in A (Ik` = Sk`/(SQRT(3) Un)). Used for short circuit data exchange according to IEC 60909 Default: 0.0

maxR0ToX0Ratio

Maximum ratio of zero sequence resistance of Network Feeder to its zero sequence reactance (R(0)/X(0) max). Used for short circuit data exchange according to IEC 60909 Default: 0.0

maxR1ToX1Ratio

Maximum ratio of positive sequence resistance of Network Feeder to its positive sequence reactance (R(1)/X(1) max). Used for short circuit data exchange according to IEC 60909 Default: 0.0

maxZ0ToZ1Ratio

Maximum ratio of zero sequence impedance to its positive sequence impedance (Z(0)/Z(1) max). Used for short circuit data exchange according to IEC 60909 Default: 0.0

minInitialSymShCCurrent

Minimum initial symmetrical short-circuit currents (Ik` min) in A (Ik` = Sk`/(SQRT(3) Un)). Used for short circuit data exchange according to IEC 60909 Default: 0.0

minR0ToX0Ratio

Indicates whether initial symmetrical short-circuit current and power have been calculated according to IEC (Ik`). Used for short circuit data exchange according to IEC 6090 Default: 0.0

minR1ToX1Ratio

Minimum ratio of positive sequence resistance of Network Feeder to its positive sequence reactance (R(1)/X(1) min). Used for short circuit data exchange according to IEC 60909 Default: 0.0

minZ0ToZ1Ratio

Minimum ratio of zero sequence impedance to its positive sequence impedance (Z(0)/Z(1) min). Used for short circuit data exchange according to IEC 60909 Default: 0.0

voltageFactor

Voltage factor in pu, which was used to calculate short-circuit current Ik` and power Sk`. Default: 0.0

referencePriority

Priority of unit for use as powerflow voltage phase angle reference bus selection. 0 = don t care (default) 1 = highest priority. 2 is less than 1 and so on. Default: 0

p

Active power injection. Load sign convention is used, i.e. positive sign means flow out from a node. Starting value for steady state solutions. Default: 0.0

q

Reactive power injection. Load sign convention is used, i.e. positive sign means flow out from a node. Starting value for steady state solutions. Default: 0.0

Documentation of parent class RegulatingCondEq:

A type of conducting equipment that can regulate a quantity (i.e. voltage or flow) at a specific point in the network.

RegulatingControl

The regulating control scheme in which this equipment participates. Default: None

controlEnabled

Specifies the regulation status of the equipment. True is regulating, false is not regulating. Default: False

Documentation of parent class ConductingEquipment:

The parts of the AC power system that are designed to carry current or that are conductively connected through terminals.

BaseVoltage

All conducting equipment with this base voltage. Use only when there is no voltage level container used and only one base voltage applies. For example, not used for transformers. Default: None

Terminals

Conducting equipment have terminals that may be connected to other conducting equipment terminals via connectivity nodes or topological nodes. Default: “list”

SvStatus

The status state variable associated with this conducting equipment. Default: None

Documentation of parent class Equipment:

The parts of a power system that are physical devices, electronic or mechanical.

aggregate

The single instance of equipment represents multiple pieces of equipment that have been modeled together as an aggregate. Examples would be power transformers or synchronous machines operating in parallel modeled as a single aggregate power transformer or aggregate synchronous machine. This is not to be used to indicate equipment that is part of a group of interdependent equipment produced by a network production program. Default: False

EquipmentContainer

Container of this equipment. Default: None

OperationalLimitSet

The operational limit sets associated with this equipment. Default: “list”

Documentation of parent class PowerSystemResource:

A power system resource can be an item of equipment such as a switch, an equipment container containing many individual items of equipment such as a substation, or an organisational entity such as sub-control area. Power system resources can have measurements associated.

Controls

Regulating device governed by this control output. Default: “list”

Measurements

The power system resource that contains the measurement. Default: “list”

Location

Location of this power system resource. Default: None

Documentation of parent class IdentifiedObject:

This is a root class to provide common identification for all classes needing identification and naming attributes.

DiagramObjects

The domain object to which this diagram object is associated. Default: “list”

mRID

Master resource identifier issued by a model authority. The mRID is globally unique within an exchange context. Global uniqueness is easily achieved by using a UUID, as specified in RFC 4122, for the mRID. The use of UUID is strongly recommended. For CIMXML data files in RDF syntax conforming to IEC 61970-552 Edition 1, the mRID is mapped to rdf:ID or rdf:about attributes that identify CIM object elements. Default: ‘’

name

The name is any free human readable and possibly non unique text naming the object. Default: ‘’

description

The description is a free human readable text describing or naming the object. It may be non unique and may not correlate to a naming hierarchy. Default: ‘’

energyIdentCodeEic

The attribute is used for an exchange of the EIC code (Energy identification Code). The length of the string is 16 characters as defined by the EIC code. References: Default: ‘’

shortName

The attribute is used for an exchange of a human readable short name with length of the string 12 characters maximum. Default: ‘’

cgmesProfile

alias of cimpy.cgmes_v2_4_15.Base.Profile

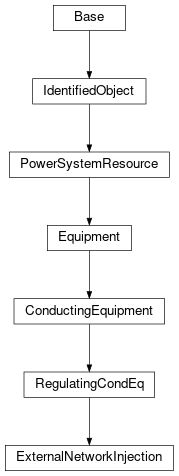

Inheritance Diagram:
